Duplex (Double element) Slot Resistance Thermometers

Duplex RTD PT100

Product Overview

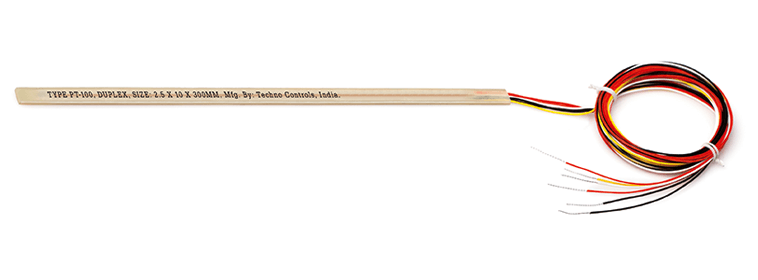

Duplex stator winding RTD provide extra protection for Motors & Generator. The Second element is used either incase of damage of one element or use one element to display temperature at machine & second element for control room.

Main Features

  • Slim dimensions to get inserted in between windings

  • Bifilar wound slot resistance thermometer design that prevents induction voltage resulting in measurement errors

  • Resistance to shock, vibration and pressure

  • Withstand of VPI(Vaccum Pressure Impregnation) Process

  • High Dielectric Strength

  • ATEX, IECEx, CSA approved model available for equipment used in hazardous area

Specification

TYPE

PT 100(100 ohm at 0°C)*

Model

TSRF series

Body Material

Fibre Glass epoxy

Temperature Class:

Class F (Temperature limit:155°C) or

Class H (Temperature limit:180°C)

Calibration Standard:

IEC 60751

Temperature coefficient (TCR):

0.003850

Accuracy:

Class A/B/2B

Sensing current:

10mA maximum

Dielectric strength:

3 KV/50Hz for 1 minute between leads and surface of Glass epoxy
body (Increased dielectric strength up to 5 KV/50Hz for 1 minute upon request.)

Lead Wire:

2/3/4 single or multiple stranded silver plated copper wire with PTFE
or Polyamide insulation(special Lead wire and cable upon
request).Please note that the selection of suitable wire gauge is
depend up on the width and thickness of the sensor.

For Sizes & all other dimension please refer drawing.

Note:Other values like PT-50,PT-200 and RTD with TCR value 0.003920 etc. are available upon request. Custom design of sensors are also available upon request.

Model: TSRF series (Double element)

MODEL: TSRF-ACC-L-T-W-NW-CL-WG-CC

ACC

Accuracy of RTD element (A/B/2B)

L

Length in mm

T

Thickness in mm

W

Width in mm

NW

Nos. of wires (option 2/3/4)

CL

Lead length in mm

WG

Wire Gauge of lead wires in AWG (option 22 to 28 AWG)

CC

Lead wire Construction (See table I)

EXAMPLE (Part Number): TSRF-B-150-2-8-2-1000-24-X

DIMENSIONAL RANCE (IN MM)
PARAMETER
MAX
MIN*
TOLERANCE
LENGHT(L)
600.0
45.0
+/- 5.0
THICKNESS(T)
4.5
2.0
+/-0.3
WIDTH(W)
30.0
10.0
+/-0.3
LEAD LENGTH (CL)
50000.0
1000.0
+50.0/-0.0

Cable Construction

TABLE 1
DESCRIPTION
CODE
TWISTED TEFLON INSULATED /TEFLON JACKETED
X
FLAT TEFLON INSULATED LEADS
Y
FLAT POLYAMIDE INSULATED LEADS
Z
FLAT TEFLON INSULATED AND JACKETED
W
TWISTED TEFLON INSULATED /SHIELDED/ TEFLON JACKETED
R

** Patent apply
