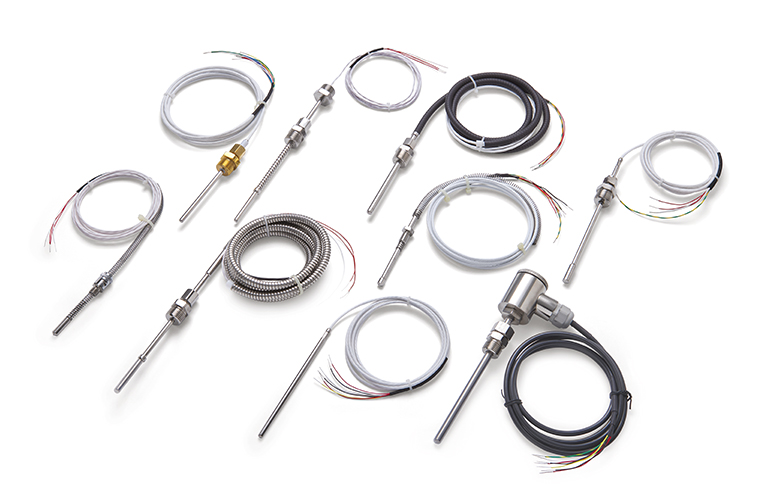

ATEX, IECEx, CSA, EAC, PAC, CCC, UKCA, INMETRO, ECAS Ex, SIL & PESO approved Bearing Temperature Detectors

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection. This design is quite rugged and suitable where variable insertion length is preferred.

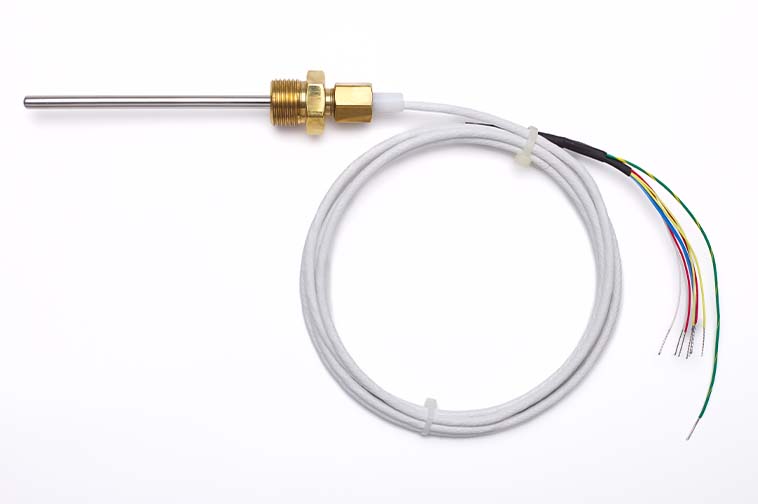

Model TBTD-I is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads (supply lines). The Teflon insulation sleeve is provided on SS tube for fitting of instrument connection. This arrangement prevents damage to the SS tube from instrument connection and provides the electrical isolation between sensor and instrument connection. The adjustable connection (instrument connection) is free to move on Teflon sleeve, which facilitates the variable insertion length. The instrument connection can be screwed to adjust the immersion depth within the drill hole according to customized set-up.

Distinct options are available with this design including various dimensions, connecting threads, single or double element, compression fitting etc.

Note - Contact us for customizations other than above

Ideally suited for temperature monitoring of bearings of motors and generators, machines, and tools in manufacturing and for industrial motor protection. This design is quite rugged and suitable where spring loaded low insertion length is preferred for bearing temperature measurement.

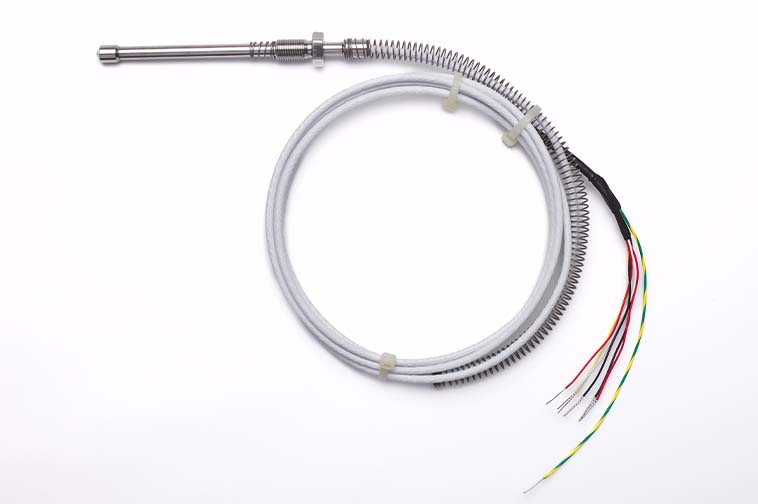

Model TBTD-J is assembled with one or two measuring elements, which are placed in stainless steel sheath along with extension leads (supply lines). The SS fitting for instrument connection can be screwed to ensure the adequate spring tension for solid contact in drilled holes, and with measuring surfaces for faster response and accurate readings.

Distinct options are available with this design including various dimensions, connection threads, single or double element, dierent RTD elements etc.

Note - Contact us for customizations other than above.

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection, where isolation is required between BTD and the drilled holes and measuring surfaces.

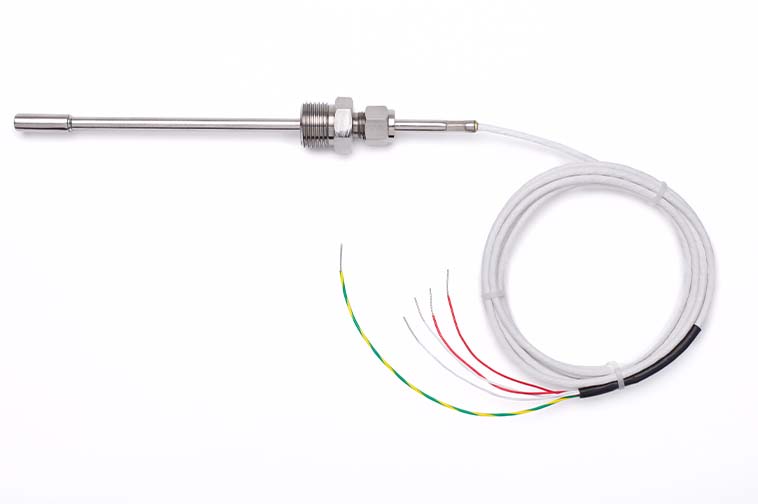

Model TBTD-K is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads (supply lines). The insulation over sheath is provided for isolation between BTD and the drilled holes and surfaces where temperature is to be measured. The insulation provides additional protection against corrosive measuring surfaces and/or provides electrical insulation. The BTD comes with the adjustable instrument fitting with distinct threads, which can facilitate customers to fix the BTDs for required length. The connection fitting comes with inside Teflon ring to prevent the damage to the insulation over sheath.

Distinct options are available with this design including various dimensions, connecting threads, single or double element, compression fitting etc.

Note - Contact us for customizations other than above.

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection, where head type temperature sensor is the requirement.

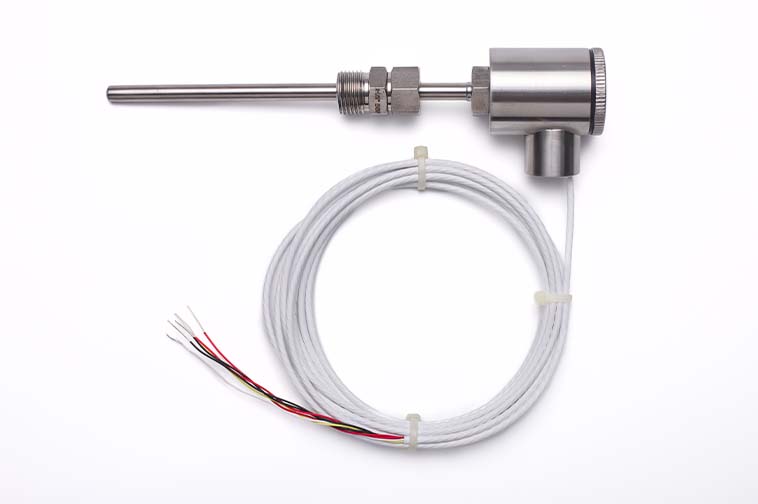

Model TBTD-L is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads (supply lines). The optional adjustable instrument connection fitting is also provided to facilitate customer to fix the BTD as per their insertion requirement.

Distinct options are available with this design including various dimensions, instrument, and cable entry threads, single or double element, compression fitting, head material, cable length etc.

Note - Contact us for customizations other than above.

Ideally suited for temperature monitoring of bearings of motors and generators, machines, and tools in manufacturing and for industrial motor protection where BTDs are required to be in solid contact with measuring surfaces.

Model TBTD-N is assembled with one or two measuring elements, which are placed in stainless steel sheath along with extension leads (supply lines). The instrument connection fitting and the spring are provided for adequate pressure for a stable thermal coupling which ensures fast and accurate temperature readings from measuring surfaces. The sheath can also be provided with heat shrink sleeve or Teflon coating for additional layer against corrosive atmospheres and for electrical isolation.

In addition to, BTD is provided with a fix fitting at the other end of SS assembly, which facilitates customer to mount their respective accessory over BTD. It can be kept unused if not required.

Distinct options are available with this design including various dimensions, instrument connection threads, single or double element, different RTD elements, optional Teflon coating or heat shrink sleeve over sheath etc.

Note - Contact us for customizations other than above

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection where simple probe type temperature detector is preferred.

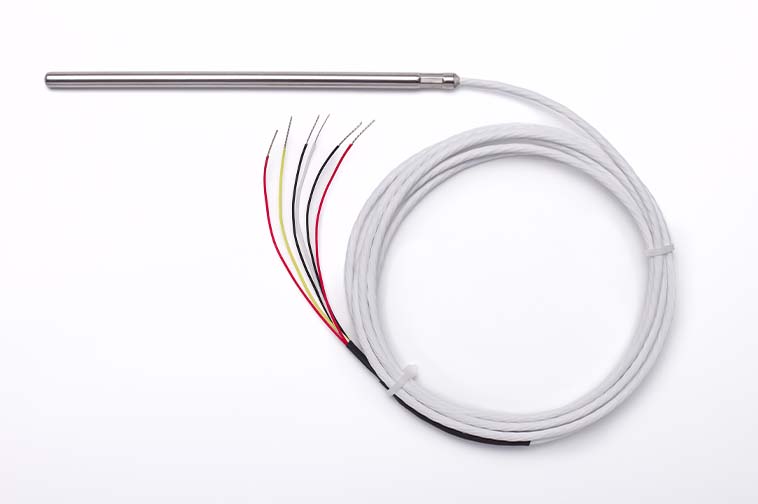

Model of TBTD-O is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads / supply lines. It offers simple construction.

Distinct options are available with this design including various dimensions, sheath material, single or double element, and cable construction.

Note - Contact us for customizations other than above

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection where cable is required to be protected against mechanical damages during the operation.

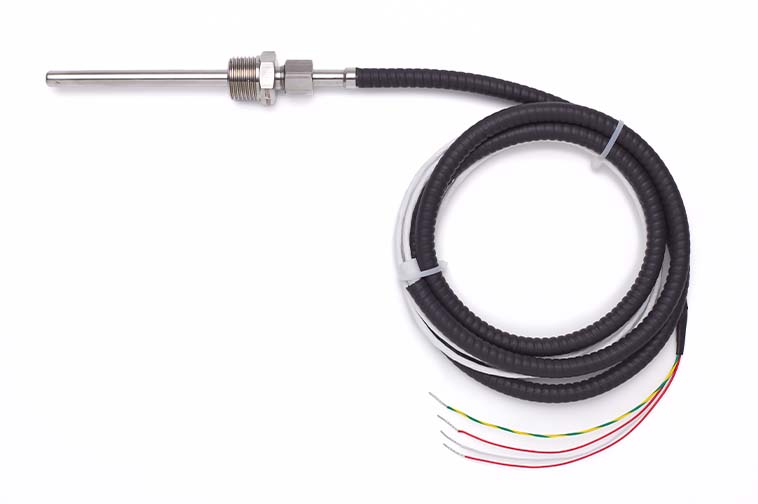

Model TBTD-Q is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads (supply lines). This BTD comes with the adjustable instrument connection fitting, which facilitates customer to adjust the insertion of the sensor. The flexible SS armour is provided over the extension leads as per the requirement. It provides mechanical protection to the extension lines. Optionally, the flexible armour can also be covered with Heat shrinkable sleeve, which provides the electrical and atmospheric isolation to the cable armour

Distinct options are available with this design including various dimensions, instrument connection threads, single or double element, compression fitting etc.

Note - Contact us for customizations other than above.

Ideally suited for temperature monitoring of machines and tools in manufacturing and for industrial motor protection where isolation is required between BTD and measuring surfaces and cable is required to be protected against mechanical damages during the operation.

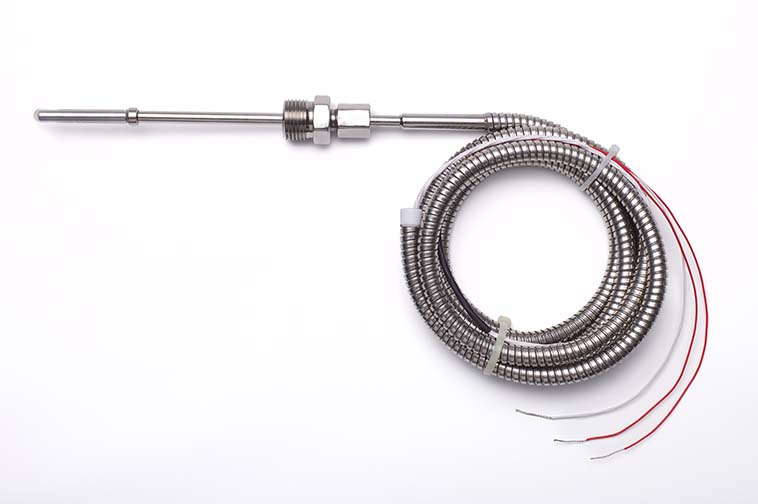

Model TBTD-U is assembled with one or two measuring elements, which are placed in stainless steel tube along with extension leads (supply lines). Teflon coating or sleeve is provided on front part of sheath to isolate sheath from measuring surfaces. It provides additional protection against corrosive measuring surfaces and provides insulation depending upon application. The flexible SS armour is provided over the extension leads as per the requirement. It provides mechanical protection to the extension lines. Optionally, the flexible armour can also be covered with Heat shrinkable sleeve, which provides the electrical and atmospheric isolation to the cable armour.

Distinct options are available with this design including various dimensions, instrument connection threads, single or double element, compression fitting etc.

Note - Contact us for customizations other than above.
